SPECIFICATIONS

Brand Name: PowMr

Certification: CE

High-concerned chemical: None

Is Smart Device: Yes

Model Number: POW-LVM3.6M-24V

Origin: Mainland China

Output Current: MPPT 120A

Output Frequency: 50Hz/60Hz

Output Type: SINGLE

Size: 110*334*423 cm

Weight: 10KG

is_customized: Yes

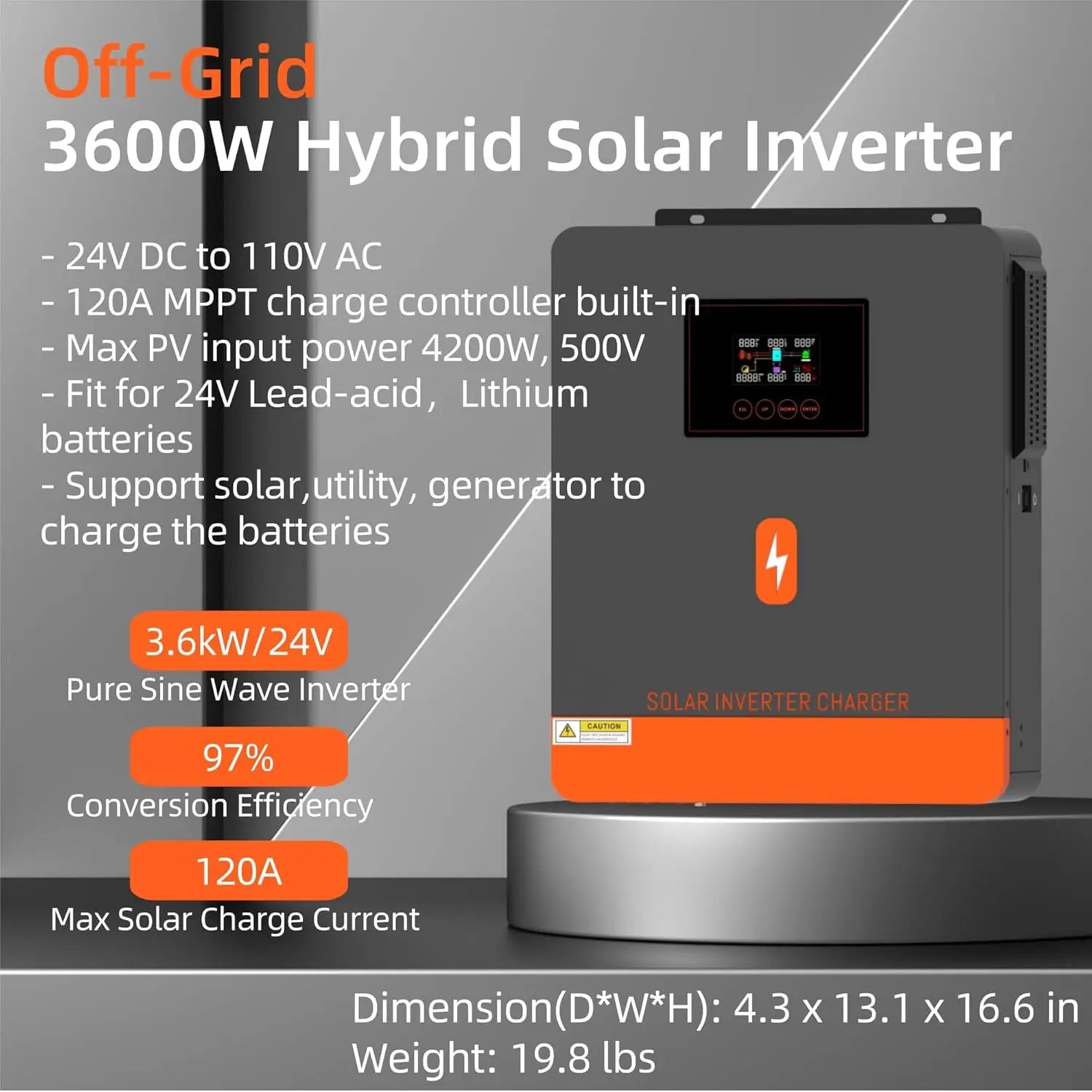

PowMr 3.6KW Hybrid Solar Inverter 24V 110V Off Grid Pure Sine Wave Inverter Single Phase with MPPT 120A Solar Battery Charger

【Pure Sine Wave Solar Inverter】

3.6KW solar inverter 24V 110Vac adopts full digital voltage and current double closed-loop control, advanced SPWM technology, and output of pure sine wave. It is a new solar inverter charger built-in 120A Mppt controller and an 80A AC Charger. Support Utility, Generator, and Solar Charge

Compatible with Multiple Battery Type

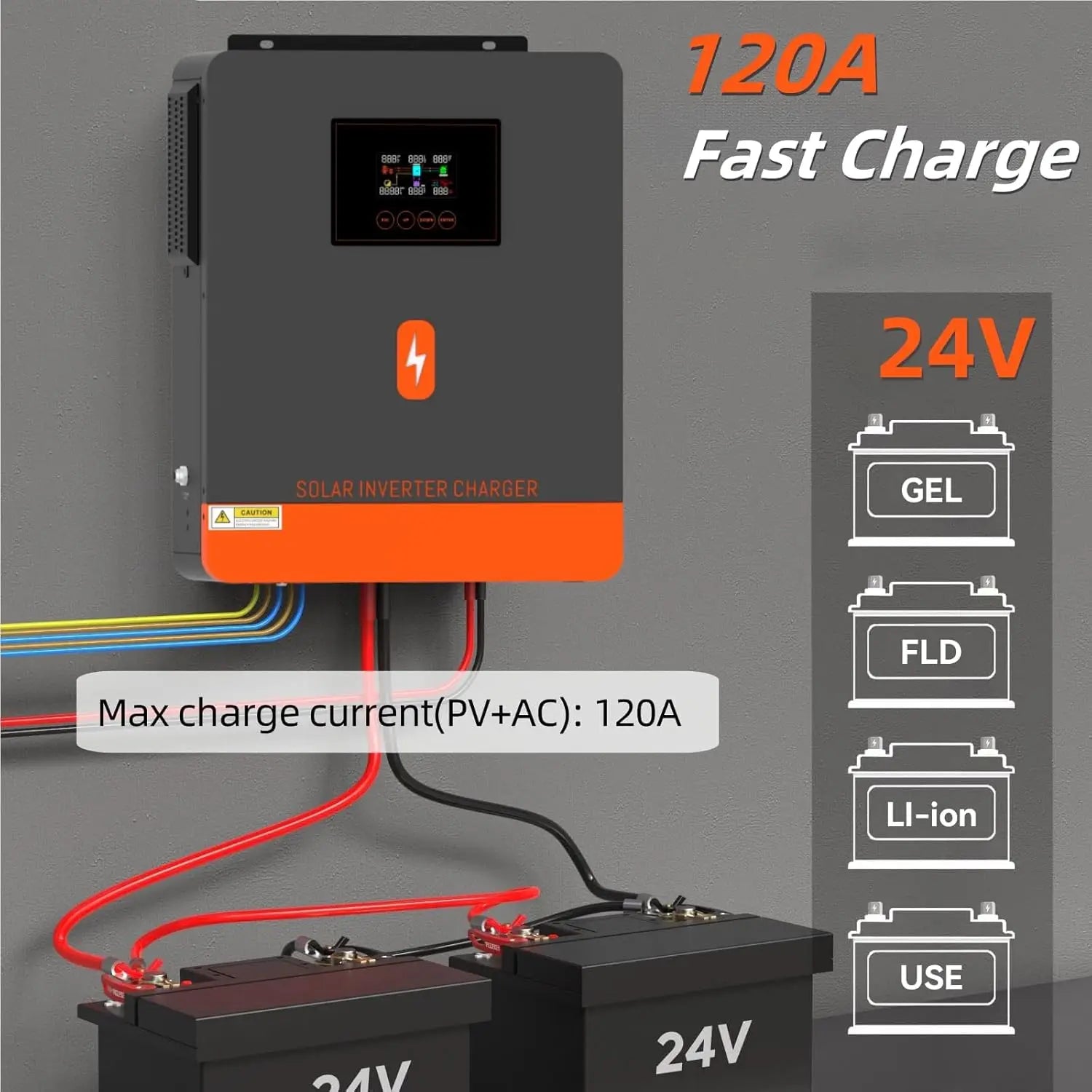

Off-Grid solar inverter 24V 3600w activates lithium battery by PV solar or mains, allowing access to the 24V lead-acid (Seal, AGM, Gel, Flooded) battery and lithium battery. suggest battery cable size: 2awg

Technical Specifications

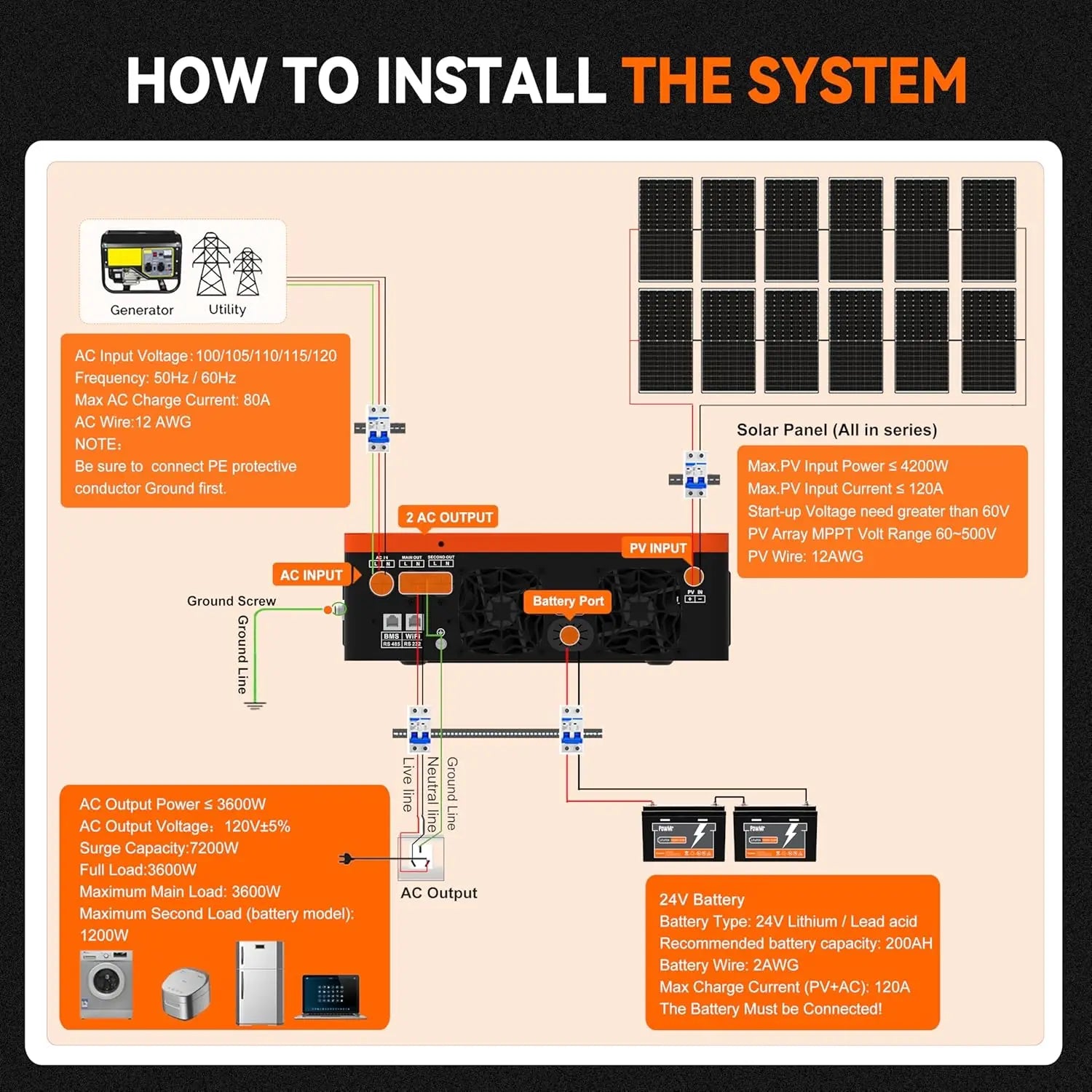

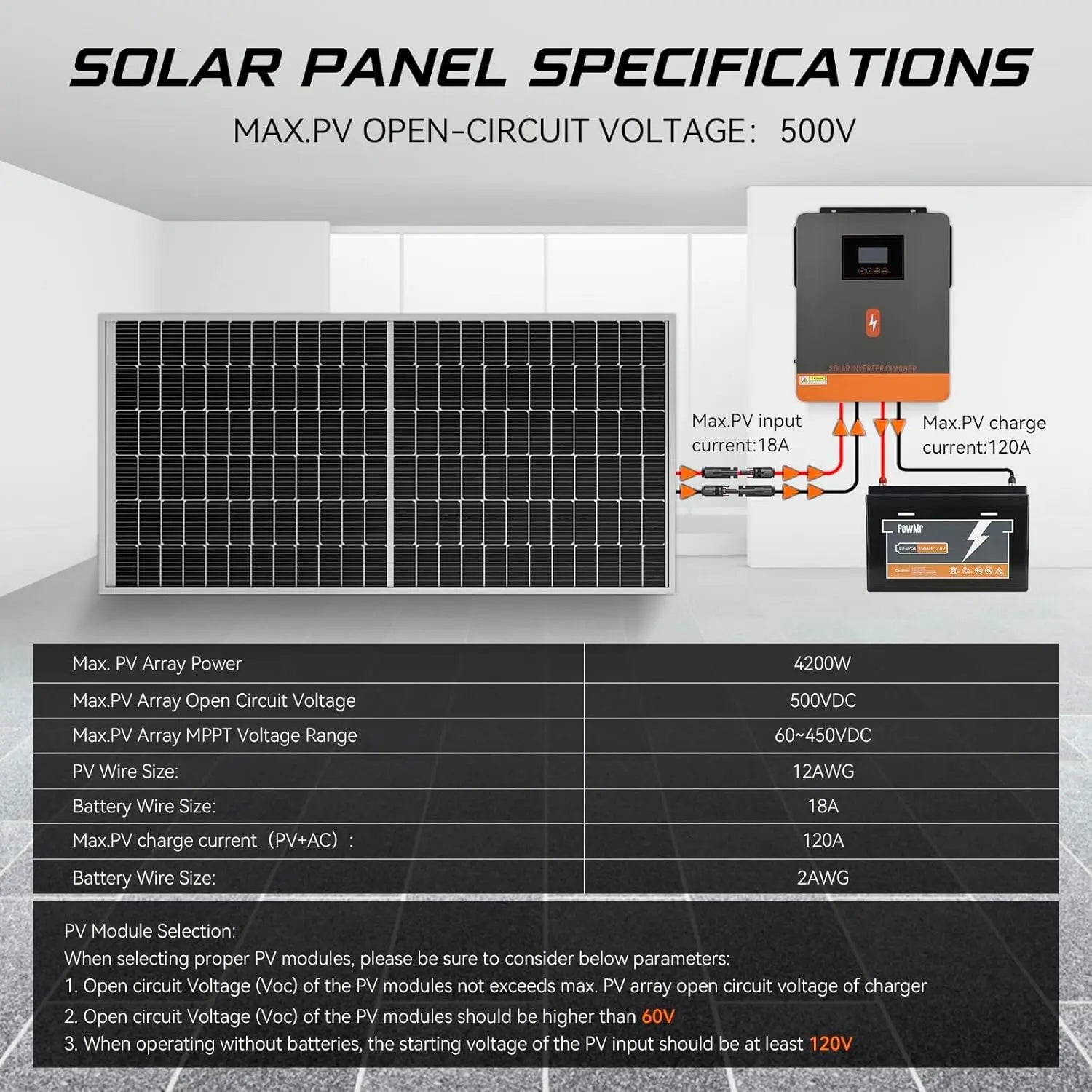

3600W solar inverter pure sine wave 24V DC to 120V AC. Max PV Input: 4200W, 500V(VOC), 18A; and Max.PV output: 120A; Hybrid charging Max charger current (AC charger+PV charger): 120A; PV Starting voltage >60V, suggest all solar panels in series. suggest PV and AC cable size: 12awg
